Sonatest produce a wide offering of phased array transducers in two different lines – X-Series and DAAH.

DAAH

Recognised for its high quality and performance for more than 10 years, the DAAH (Detachable Active Array Head) range provides a unique phased array transducer solution by splitting the array from the cable.

DAAH D1A
High Performance

Detachable Universal Use Transducers

Overview

Common applications:

· General & critical welds (Butt, T joints and Corner joints)

· Castings, bars & billets

· Structural components (large pins)

· Shaft inspection

· Flanges

· Automotive parts

· Machined parts

Features

· Quick I-PEX Connector (QX)

· Quick I-Pex Bracket

· 2.5m Cable (other cable lengths upon request)

· Armoured Cable on request

· Hard Faced Option on request

· Detachable transducer and cable

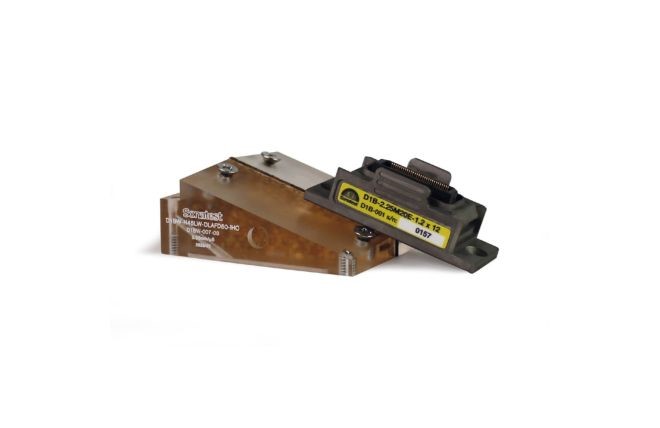

DAAH D1B
Dual Linear Array

Detachable Dual Array Weld Inspection

Overview

Common applications:

· Pressure vessels

· Austenitic stainless steel alloys

· Dissimilar welds

· Very attenuative material

Features

· Quick I-PEX Connector (QX)

· Quick I-Pex Bracket

· 2.5m Cable (other cable lengths upon request)

· Armoured Cable on request

· Hard Faced Option on request

· Detachable transducer and cable

· Designed for DLA applications

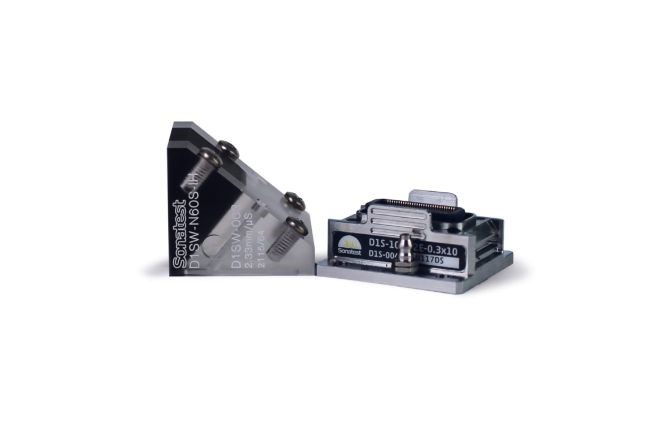

DAAH D1S
Compact & Detachable

Detachable High Frequency Transducer

Overview

Common applications:

· General & critical welds (Butt, T joints and Corner joints)

· Castings, bars & billets

· Structural component (large pins)

· Shaft inspection

· Flanges

· Automotive parts

· Machined parts

Features

· Quick I-PEX Connector (QX)

· Quick I-Pex Bracket

· 2.5m Cable (other cable lengths upon request)

· Armoured Cable on request

· Hard Faced Option on request

· Detachable transducer and cable

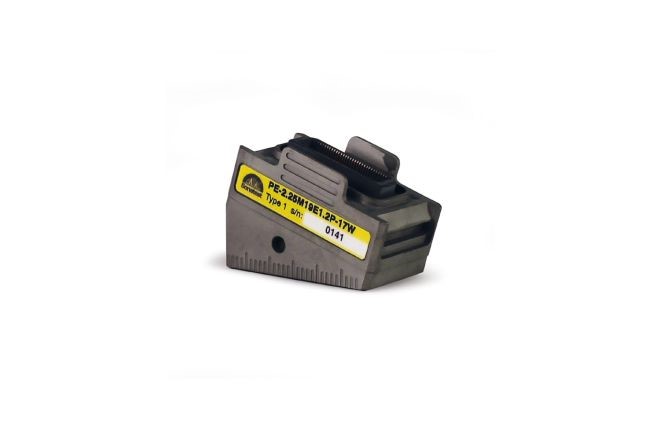

DAAH D1Z
Compact Wedge

Detachable Integrated Wedge Transducers

Overview

Common applications:

· General & critical welds (Butt, T joints and Corner joints)

· Castings, bars & billets

· Structural component (large pins)

· Shaft inspection

· Flanges

· Automotive parts

· Machined parts

Features

· Quick I-PEX Connector (QX)

· Quick I-Pex Bracket

· 2.5m Cable (other cable lengths upon request)

· Armoured Cable on request

· Detachable transducer and cable

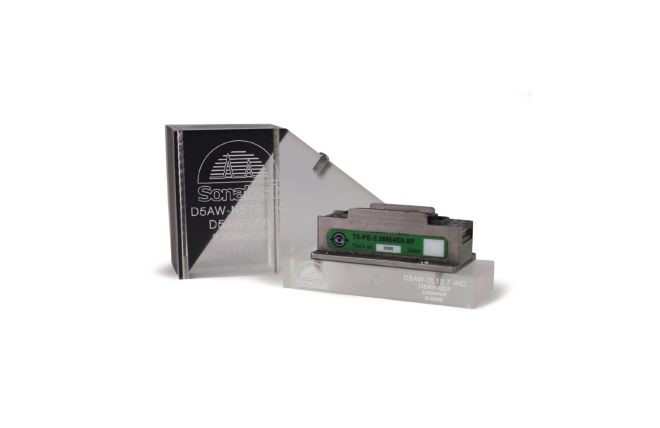

DAAH D5A
Linear Scan

Detachable Universal Use Transducer

Overview

Common applications:

· Aerospace parts (large composite)

· Large aluminium plates (delaminations)

· Corrosion, blistering & thickness mapping

· Critical welds of thick material

Features

· Quick I-PEX Connector (QX)

· Quick I-Pex Bracket

· 2.5m Cable (other cable lengths upon request)

· Armoured Cable on request

· Hard Faced Option on request

· Detachable transducer and cable
