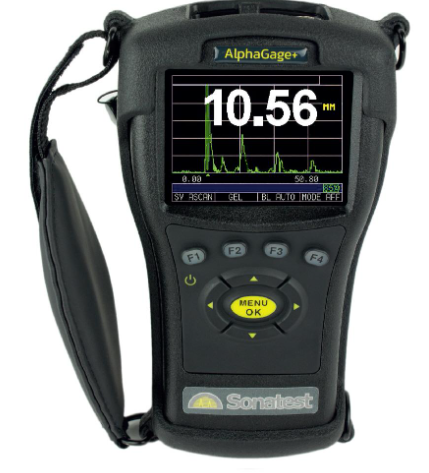

Alpha Gage+ (Oxide Scale)
Features:
- Echo-to-Echo “Through Coatings” functionality (Corrosion Models Only).
- Up to 27 Hour battery life (high-capacity re-chargeable battery pack via the USB port).
- Change colour and vibrate on alarm (ideal for inspections in loud environments)
- Wide thickness range.
- Inches, mm or μSec.
- Velocity mode
- Fast Min/Max mode to display actual thickness and minimum and maximum at the same time
- Multiple languages
- Available Live Waveform with gain, range, rectification, blank adjustments (with W Upgrade only).
- 2 GB micro SD card standard, expandable to 32 GB.
- Available Datalogger interfaces with Microsoft Excel (With DL Upgrade only).
- Designed for IP67
- Simple one hand operation.
- Field upgradeable software options.
Specification:
|
Measuring Range |
0.508-585mm Depends on Probe and Material |
|
Display |
3.5” high resolution colour TFT display, 320 x 240 pixels |
|
Backlight Management |
LED backlight, includes variable light intensity. |
|
Operating Temperature |
-20 to 50°C |
|
Weight |
550g/ Li-ion Battery |
|
Size |
185 x 100 x 50 mm |
|
Connector Type |
Lemo 00 (x2) |
|
Measurement Rate |
4Hz or 25Hz |
Ultrasonic Thickness Gauge: (Micro Gage III)
Features:
- Resolution 0.0001
- 30 MHz bandwidth
- Sunlight readable
- Zoom auto tracking
- Live A-scan (colour optional)
- Storage and recall of set ups
- Datalogger 100,000 readings
- Vibration and colour change with alarm
- Multiple Modes for challenging applications
- Real-Time adjustment of initial gain, slope, range, rectification, zoom and blinking’s
- Languages include: English, German, French.
Specification:
Features | Description |
Thickness Range | 0.10-508mm |
Bandwidth | 0.5 – 30MHz (-3dB) |
Pulser | Square Wave |
Waveform | Live colour waveform with dynamic colour change on alarm, large thickness reading. Live monochrome waveform. |
Rectify | RF, Full Wave, Half Wave+, Half Wave- |
Gain | Auto or Manual in 1dB steps for varying test conditions Low, Standard and High for varying test conditions |
Time Dependant Gain | Adjust for slope and gain level as a function of time |
Weight | 230g |
Size | 5.0mm (W) x 127.0mm (H) x 31.8mm |
Operating Temperature | -20 to 50°C |
Material Velocity | 0.508 – 18.699mm/μsec |
Display | 220 x 170 Graphic Colour TFT display |
Battery Type | 2 x AA alkaline |

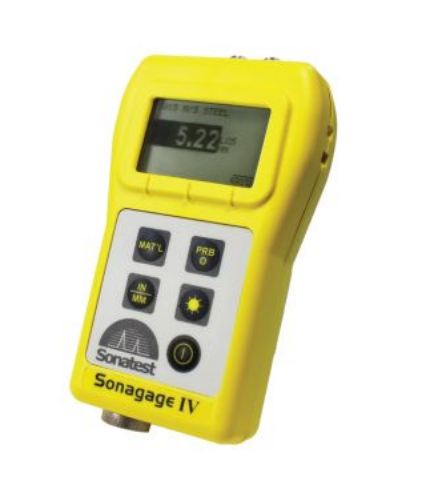

Ultrasonic Thickness Gauge (Sonagage IV)
Features:
- Wide thickness range (.508 to 585mm depending on gage type, material and transducer)
- High temperature probes available up to 509C (intermittent use)
- Temperature correction
- File compare features shows old readings along with new readings for datalogger versions (real-time corrosion monitor)
- Grid view
- Password lock
- Supervisor and other locks
- 2,700 stored setups
- Change colour and vibrate on alarm
- Application Include:
- Tube & Pipe
- Tanks & Boilers
- Pressure Vessels
- Storage Tanks, Ship Hulls
- Glass & Plastic

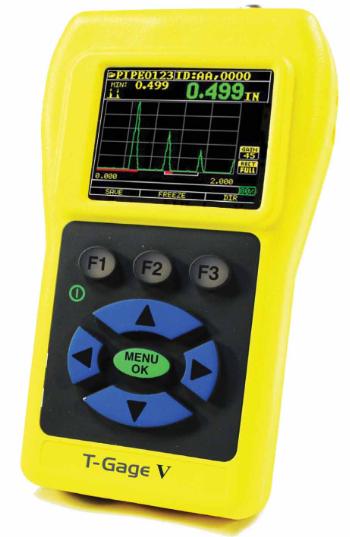

Ultrasonic Thickness Gauge T Gage- V
Features:
T-Gage VB
The T-Gage VB is a basic variable velocity gauge with probe and is the most economical model designed to make reliable, accurate thickness readings; primarily on steel structures with access to only one side. Packaged in custom moulded high-density casing with a rubber keypad, this gauge offers the end user a simple deliver datalogging function.
T-Gage V
As a mid-range model, the T-Gage V offers the most popular features including echo-to-echo (E-E). These include increase/decrease in gain; vibrate and illuminate the keypad in alarm conditions and with the “transducer attendant” – the end upgradeable options include A/B-Scan capability and the data logging software, Data XLS.
T-Gage VDL
The T-Gage VDL is the top of the range model offering all logger taking up to 50,000 readings, B-Scan and Echo-to-Echo functions. It also includes the Data Management Software, customised pouch belt clip and elasticated band.
Specification:
Feature | Description | T-Gage VB | T-Gage V | T-Gage VDL |
Thickness Range | 0.20mm – 508mm (0.008 – 20inches) (dependant on material temperature and transducer selection) | ✓ | ✓ | ✓ |
Delay Line Zero Measurement | Auto at power up with listed numeric value. Ideal for correcting delay line wear/curvature & for transducer acoustic drift at elevated temperatures | ✓ | ✓ | ✓ |
Differential Mode | Displays the difference from the actual thickness measurement and a user entered reference value | |||
Scan Mode | Displays minimum or maximum thickness value at 20 measurements per second | ✓ | ✓ | ✓ |
Hold Mode | Holds display to retain last thickness reading with reverse video display | ✓ | ✓ | ✓ |
Freeze Mode | Freezes display | ✓ | ✓ | ✓ |
Units | Inches/Millimetres/Microseconds | ✓ | ✓ | ✓ |
Gain | Low, Standard or High for varying test conditions | ✓ | ✓ | ✓ |
